Air2.6 Flx
Air-Flx Series Provided Unlimited Imagination of Creative LED Visuals for Staging Rental LED Screen, Trade Shows, Cooperates Events and Some Creative Designing of Permanent Installations.
More Details
Features of Air-Flx Series Indoor LED Screen
- Aistartec Air-Flx Series Indoor Flexible LED Panel Designed Die-cast Aluminum with Ultra-light & Ultra-thin Panel only 87mm and weight less 6.8kg;

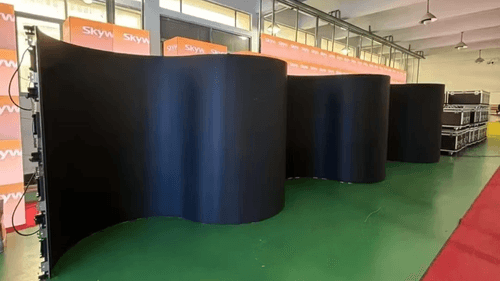

- The Curved Panel Can Be Spliced with Flat or Curved Panel from Both Left & Right. Air-Flx Series Can Be Shaped Sharp Corner Together with Air Series Right Angle, Flat and Curved Panel;

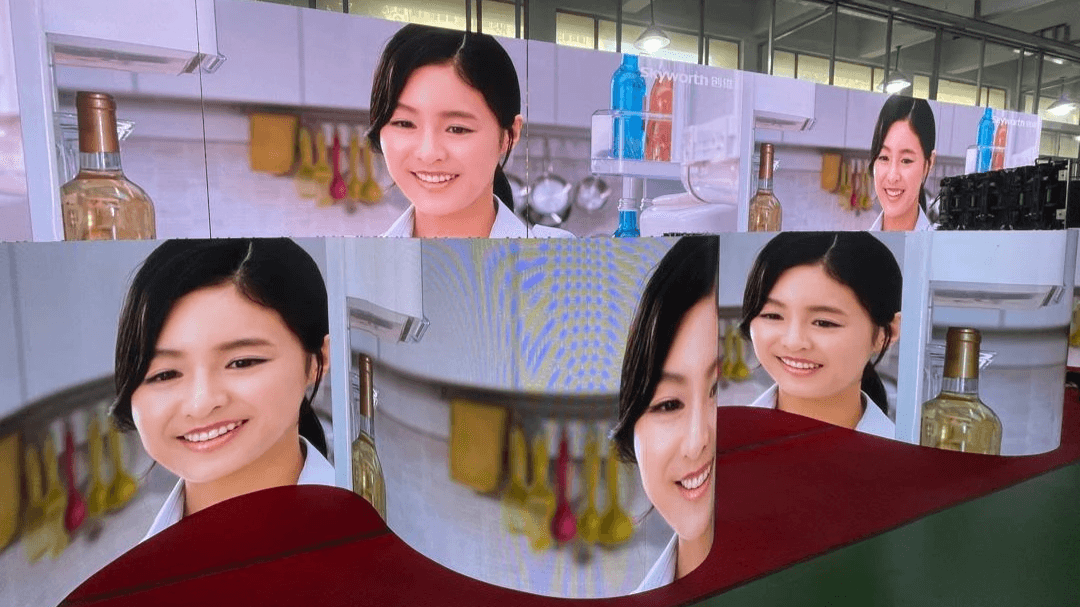

- Multiple Degree Range from -22.5 to 22.5 Degree that Allowed a Greater Concave & Convex Waves Happen for Your Show, Concerts and Events;
- The Modules Employed Robust Soft PCB Boards with Special Layout, which Give the Arc Surface Strength Power to Bend Times by Time while Keep LED Screen Surface Always Smooth;
- The Smallest Diameter Is 1.45m with 8 Panel for An Circle And An Right Angle by 2 Panels.
| TECHNICAL SPECIFICATION | |||||
| Series Parameters | Model | Air2.6 Flx | Air2.9 Flx | Air3.9 Flx | Aor3.9 Flx |
| Physical Parameter | LED | SMD1515 | SMD1515 | SMD2020 | SMD1921 |
| Pixel Pitch | 2.604mm | 2.976mm | 3.906mm | 3.906mm | |
| Panel Dimensions (WxHxD) | 500x500x72mm | 500x500x72mm | 500x500x72mm | 500x500x72mm | |
| Pixel per Panel(WxH) | 192x192 | 168x168 | 128x128 | 128x128 | |
| Pixel Density | 147456Pixel/sqm | 112896Pixel/sqm | 65536Pixel/sqm | 65536Pixel/sqm | |
| Module Dimensions | 500x250mm | 500x250mm | 500x250mm | 500x250mm | |
| Panel Material | Die Casting Aluminum | Die Casting Aluminum | Die Casting Aluminum | Die Casting Aluminum | |
| Weight | 7.0 Kg/Panel | 7.0 Kg/Panel | 7.0 Kg/Panel | 7.5Kg/Panel | |
| Electronic Parameter | Processing | 14~16 bit | 14~16 bit | 14~16 bit | 14~16 bit |
| Refresh Rate | ≥7680 Hz | ≥7680 Hz | ≥7680 Hz | ≥7680 Hz | |
| Driving Type | 1/32 | 1/28 | 1/16 | 1/16 | |
| Signal Transmission | ＜100 m(CAT5) | ＜100 m(CAT5) | ＜100 m(CAT5) | ＜100 m(CAT5) | |
| 100m-500m (Multimode ) | 100m-500m (Multimode ) | 100m-500m (Multimode ) | 100m-500m (Multimode ) | ||
| 500m-10km (Single mode) | 500m-10km (Single mode) | 500m-10km (Single mode) | 500m-10km (Single mode) | ||
| Optical Parameter | Brightness | 800~1000 Nits | 800~1000 Nits | 800~1000 Nits | 800~1000 Nits |
| Hor. Viewing Angle | 160° | 160° | 160° | 160° | |
| Ver. Viewing Angle | 140° | 140° | 140° | 140° | |
| Electrical Parameter | Input Voltage&Frequency | 100-110 V / 200-240 50-60 Hz | 100-110 V / 200-240 50-60 Hz | 100-110 V / 200-240 50-60 Hz | 100-110 V / 200-240 50-60 Hz |
| Max Power Consumption | 480w/Sq.m | 480w/Sq.m | 480w/Sq.m | 480w/Sq.m | |
| Average Power Consumption | 240w/Sq.m | 240w/Sq.m | 240w/Sq.m | 240w/Sq.m | |
| Circumstance Parameter | Temperature Range | ‐20 ℃/ +50℃ (operational) | ‐20 ℃/ +50℃ (operational) | ‐20 ℃/ +50℃ (operational) | ‐20 ℃/ +50℃ (operational) |
| ‐40 ℃/ +60℃ (storage) | ‐40 ℃/ +60℃ (storage) | ‐40 ℃/ +60℃ (storage) | ‐40 ℃/ +60℃ (storage) | ||
| Humidity | 10%-90% (operational) | 10%-90% (operational) | 10%-90% (operational) | 10%-90% (operational) | |
| 10%-90% (storage) | 10%-90% (storage) | 10%-90% (storage) | 10%-90% (storage) | ||
| IP rating (Front/Rear) | IP 30 / IP30 | IP 30 / IP30 | IP 30 / IP30 | IP 30 / IP30 | |
| Installation Type | Recommended Application | Rental | Rental | Rental | Rental |
