ITEM

Ac5.7

Ac6.67

Ac8

Ac10

Pixel Composition(SMD)

2727

2727

2727

2727

Pixel Pitch(mm)

5.7

6.67

8

10

Module Resolution(W×H)

84×56

72×48

60×40

48×32

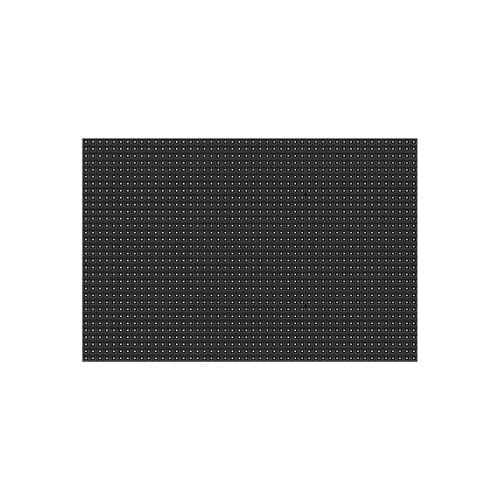

Module Size(mm)

480×320×16

Module Weight(kg)

2

Module Qty/Cabinet(W×H)

2×3

Cabinet Resolution(W×H)

168×168

144×144

120×120

96×96

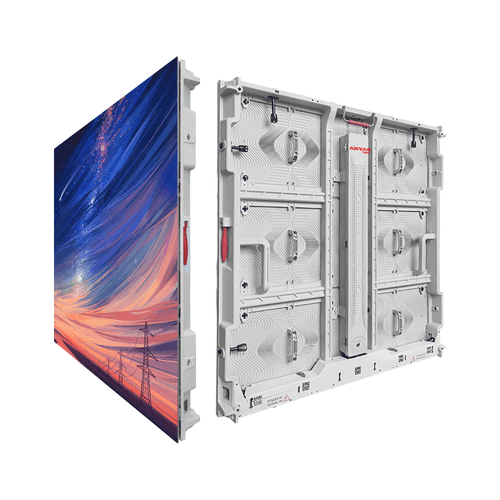

Cabinet Size(mm)

960×960×92

Cabinet Area(㎡)

0.92

Cabinet Weight(kg/cabinet)

24.5

Cabinet Material

Profile cabinet

Cabinet Density（dot/m²）

30625

22500

15625

10000

IP Rating

IP66

White Balance Brightness(nits)

6000

6000

6000

7000

Color Processor(bit)

16

Color Temperature(K)

6500-9000

Visual Angle(H/V)

140°/ 120°

Luminous point centre deviation

＜3%

Luminance uniformity

≥97%

Chromaticity uniformity

Within ±0.003Cx, Cy

Contrast Ratio

≥15000:1

The Max Power Consumption(W/㎡)

280

280

280

280

Average Power Consumption(W/㎡)

76

76

76

76

Input Voltage

AC100~240V

Frequency(Hz)

50&60

IC Driving(s)

1/7

1/6

1/3

1/2

Refreshing Ratio(Hz)

3840

Maintenance Method

Front and Rear

Lifespan(hrs)

100,000

Work Temperature/Humidity

-40℃-80℃/10%RH-98%RH (Non Condensing)

Storage Temperature/Humidity

-20℃-60℃/10%RH-98%RH (Non Condensing)
